The TUV PV 1500V DC PV1-F Solar Cable is designed for photovoltaic power systems, solar panel wiring, inverter connections, combiner boxes and PV DC power distribution. This PV1-F solar cable is suitable for connecting photovoltaic system components inside and outside buildings, especially under high mechanical requirements and extreme weather conditions.
This solar PV DC cable uses a fine stranded tinned copper conductor, XLPE insulation and XLPE outer sheath. The cable provides excellent flexibility, UV resistance, ozone resistance, hydrolysis resistance and reliable electrical performance for long-term solar outdoor applications.
Applications
- Solar PV power systems
- Solar panel wiring
- PV module connection
- Inverter DC connection
- Combiner box wiring
- Photovoltaic system components inside and outside buildings
- Permanent outdoor solar cable installation
Cable Construction
| Product Type | TUV PV 1500V DC PV1-F Solar Cable |
| Conductor | Fine stranded tinned copper conductor |
| Insulation | XLPE insulation |
| Outer Sheath | XLPE outer sheath |
| Cable Type | Single core solar cable |
| Rated Voltage | 1000/1800V DC |
| Test Voltage | 6500V, 5min |
Key Features
- PV1-F solar cable for 1500V DC photovoltaic systems
- Tinned copper conductor for stable conductivity and corrosion resistance
- XLPE insulation and XLPE sheath for reliable outdoor solar applications
- Electron beam cross-linked material does not melt or flow at high temperatures
- High resistance against UV, ozone and hydrolysis
- Excellent resistance to oil, grease, oxygen and abrasion
- Halogen free, flame retardant, low smoke and low toxicity
- Flexible and easy to strip for convenient installation
- High current carrying capacity for solar PV DC power systems
Standards and Certification
- TUV
- CE
- CCC
- RoHS
- PV1-F Solar Cable
Technical Parameters

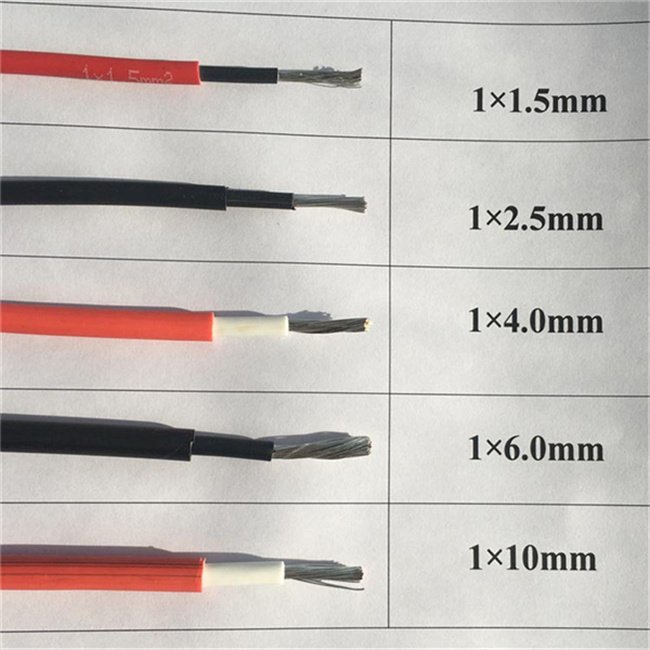

| Cable Size | Conductor Strand | Insulation Thickness | Sheath Thickness | Overall Diameter | Max. Conductor Resistance at 20°C |
|---|---|---|---|---|---|
| 1×2.5mm² | 49/0.25mm | 0.8mm | 0.8mm | 5.4±0.3mm | 8.21 Ω/km |
| 1×4mm² | 56/0.30mm | 0.8mm | 0.9mm | 6.2±0.3mm | 5.09 Ω/km |
| 1×6mm² | 84/0.30mm | 0.8mm | 0.9mm | 6.8±0.3mm | 3.39 Ω/km |
| 1×10mm² | 84/0.40mm | 1.0mm | 1.0mm | 9.0±0.3mm | 1.95 Ω/km |
| 1×16mm² | 126/0.40mm | 1.0mm | 1.0mm | 10.0±0.3mm | 1.24 Ω/km |
| 1×25mm² | 196/0.40mm | 1.2mm | 1.2mm | 12.2±0.5mm | 0.795 Ω/km |
| 1×35mm² | 276/0.40mm | 1.2mm | 1.2mm | 13.6±0.5mm | 0.565 Ω/km |
Electrical and Temperature Performance
| Rated Voltage | 1000/1800V DC |
| Test Voltage | 6500V, 5min |
| Temperature Rating | -40°C to +125°C |
| Application Temperature Range | -40°C to +90°C |
| Maximum Conductor Temperature | 120°C |
| Permitted Short-Circuit Temperature | 200°C / 5s |
