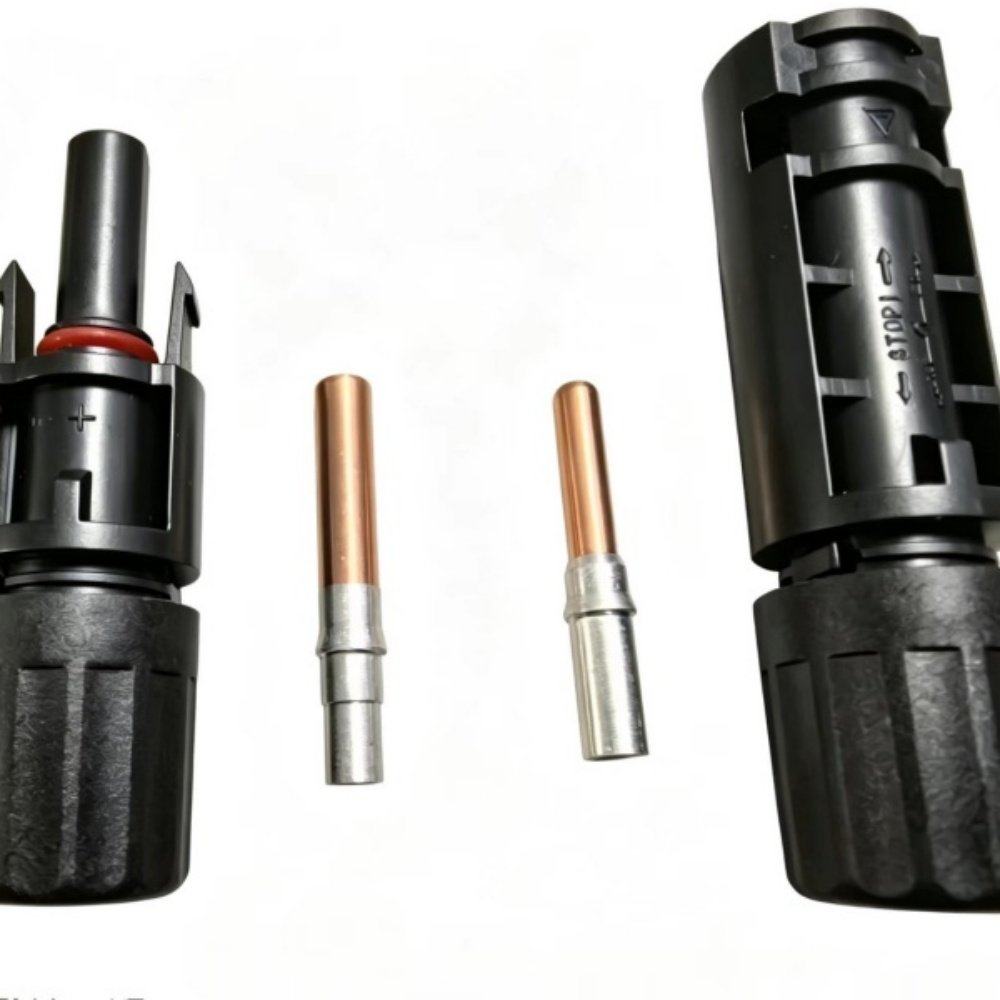

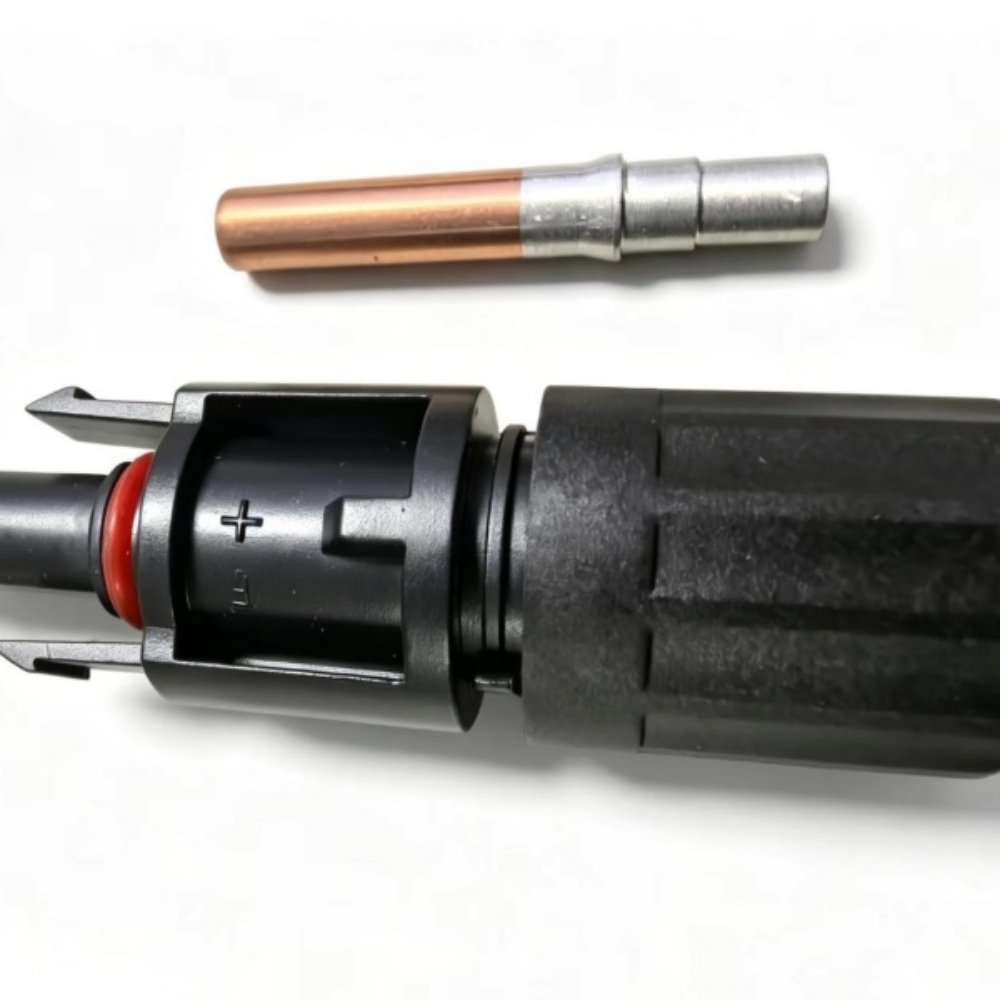

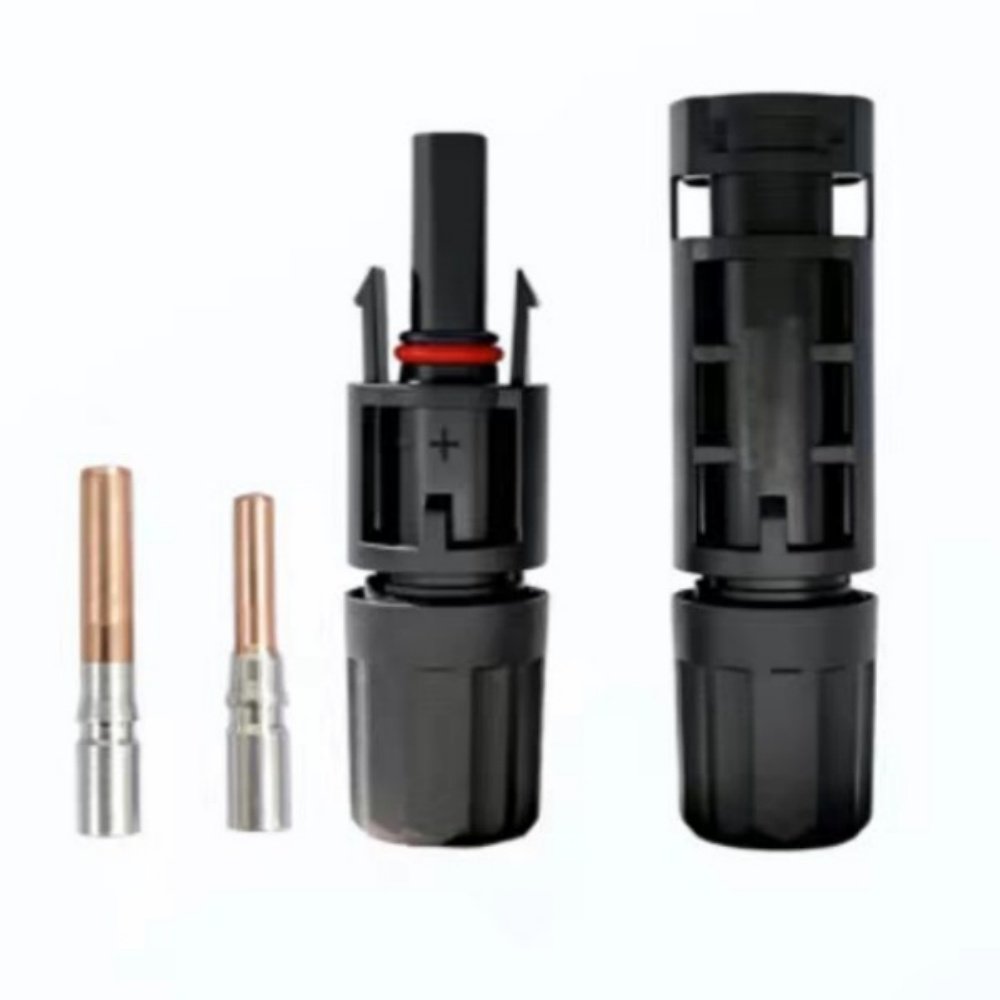

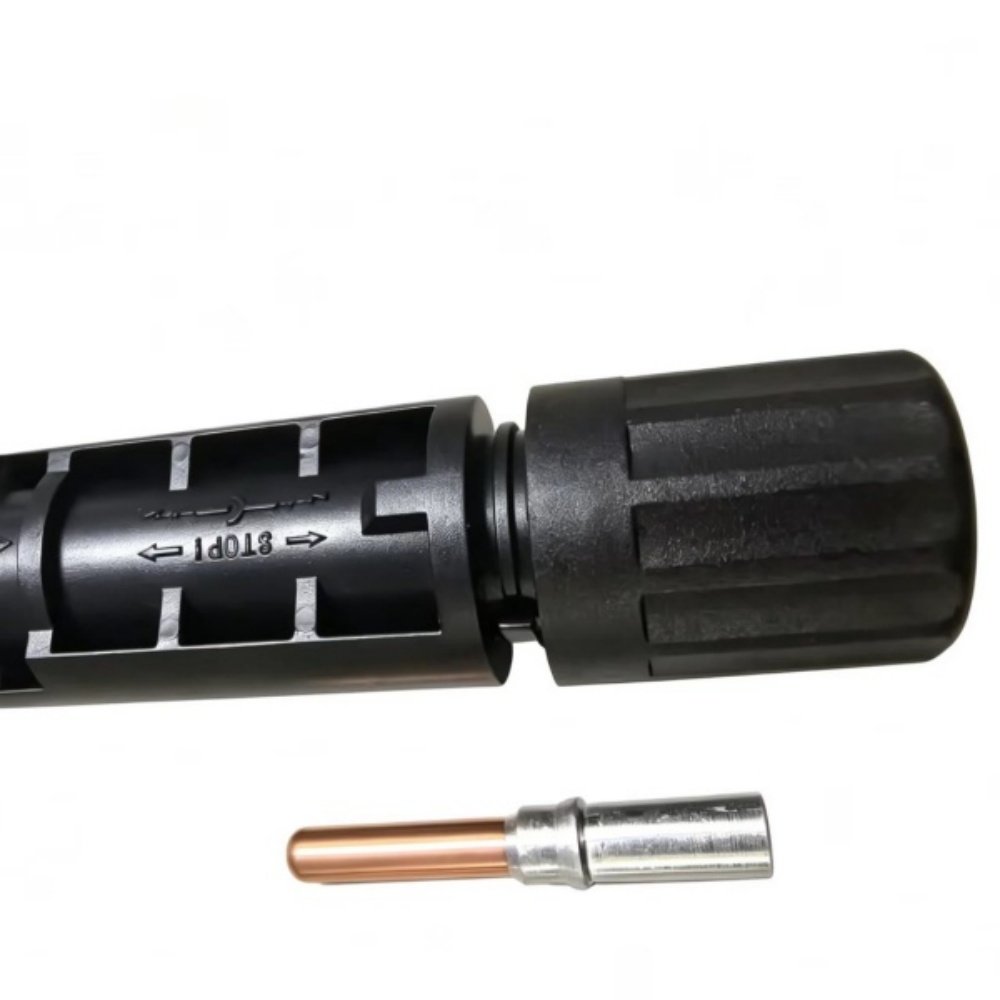

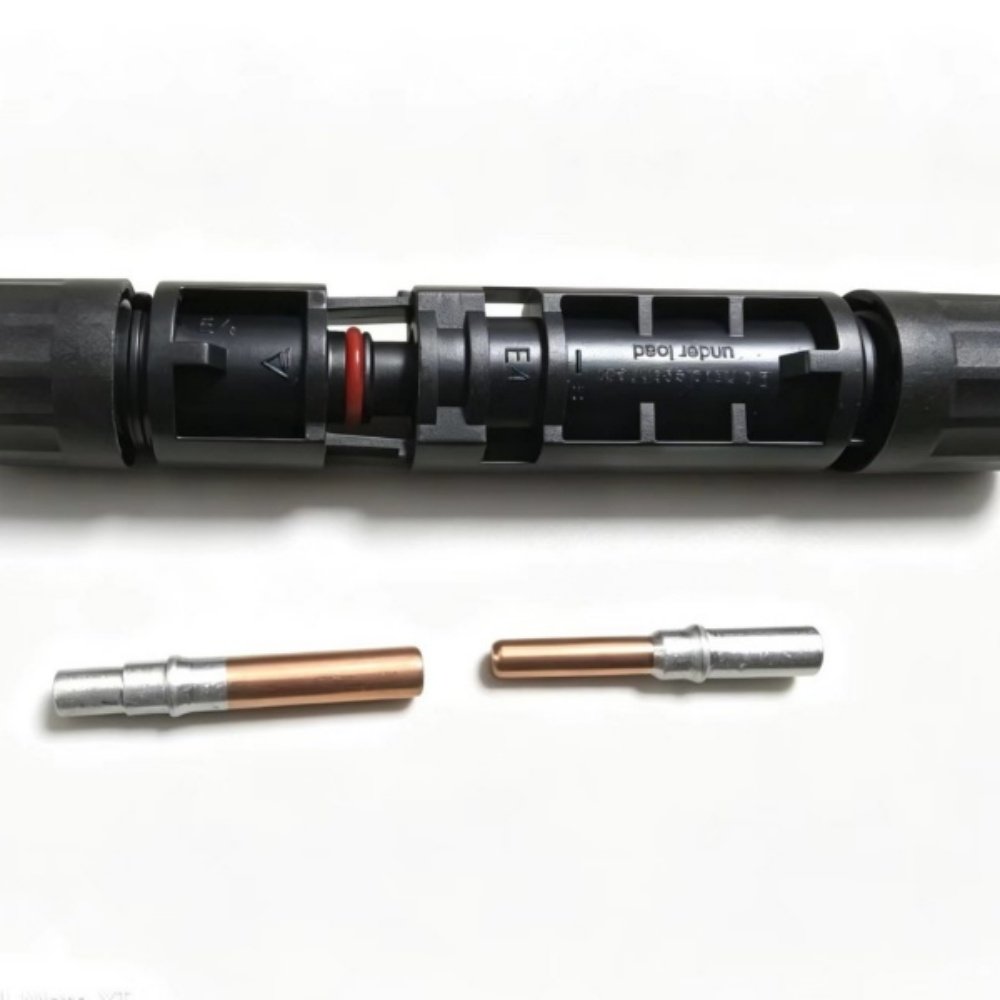

Copper-Aluminum Solar Cable MC4 Connectors 1500V
Copper-Aluminum Solar Cable MC4 Connectors 1500V are a new-generation photovoltaic connector solution designed for direct copper-to-aluminum solar cable connections. They replace the traditional copper-aluminum tube crimping followed by nut locking with a more convenient quick-installation structure, helping improve installation efficiency in photovoltaic power stations and similar solar applications.
These solar cable MC4 connectors are engineered for reliable outdoor PV system performance. With PA66 insulation material, tin-plated copper-aluminum alloy contacts, 1500V DC rated voltage, IP68/IP65 protection, UL94V-0 flame retardancy, and low contact resistance, they provide secure connection and stable electrical performance in demanding solar environments.
Applications
- Photovoltaic power stations
- Solar PV cable connection systems
- Copper-to-aluminum solar cable connections
- PV cable terminal connections
- Outdoor solar power installations
- Commercial and utility-scale solar projects
Structure
- Item: Plug Connector
- Insulation Material: PA66
- Contact Material: Copper-aluminum alloy, tin-plated
- Connection Method: Crimping
- Connection Design: Quick-installation structure for copper-to-aluminum terminal connection
Key Features
- 1500V DC rated voltage for photovoltaic systems
- IP68 / IP65 protection rating for outdoor solar applications
- IP2X protection rating when unmated
- Secure connection and superior electrical performance
- Contact resistance ≤0.3mΩ
- UL94V-0 flame-retardant performance
- Advanced anti-corrosion coating for longer lifespan
- Quick installation, compatible with standard systems
- Stable performance in extreme environments
- Lightweight design for efficient installation
- Eco-friendly production and lower lifecycle cost
Standards / Certifications
- Certification Standard: 2 PfG 2915/07.23
Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Copper-Aluminum Solar Cable MC4 Connectors 1500V |
| Item | Plug Connector |
| Operating Temperature Range | -40°C ~ +85°C |
| Maximum Temperature | 120°C |
| Protection Rating | IP68, 1m / 1h; IP65 |
| Protection Rating, Unmated | IP2X |
| Rated Voltage | 1500V DC |
| Rated Current at 85°C | 46A CU4/AL6mm², CU4/AL10mm² |
| Rated Current at 85°C | 55A CU6/AL10mm², CU6/AL16mm² |
| Rated Current at 85°C | 70A CU10/AL16mm², CU10/AL25mm² |
| Rated Current at 85°C | 95A CU16/AL25mm² |
| Rated Pulse Voltage | 16kV |
| Contact Resistance | ≤0.3mΩ |
| Flammability Rating | UL94V-0 |
| Overvoltage Category | CAT III |
| Pollution Degree | 2 |
| Insulation Material | PA66 |
| Contact Material | Copper-aluminum alloy, tin-plated |
| Connection Method | Crimping |
| Certification Standard | 2 PfG 2915/07.23 |
Why Choose Copper-Aluminum Solar Cable MC4 Connectors?
These connectors are designed to simplify copper-to-aluminum connections in solar PV systems. Compared with traditional crimping and nut-locking assembly methods, the quick-installation design helps save installation time while ensuring secure electrical contact, corrosion resistance, and stable long-term performance.
