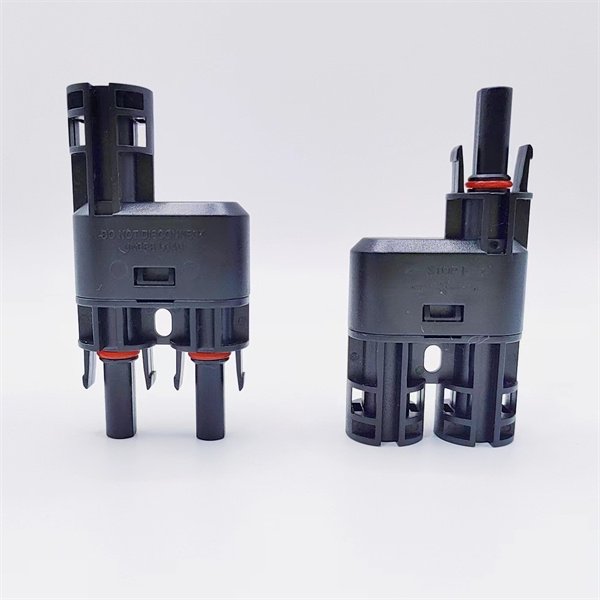

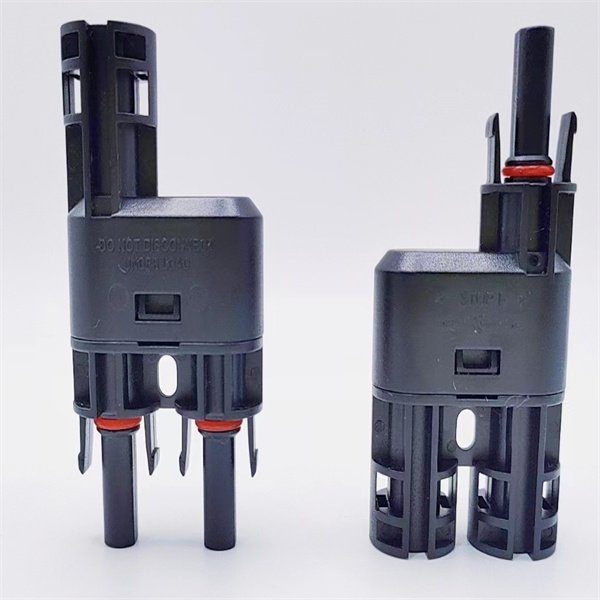

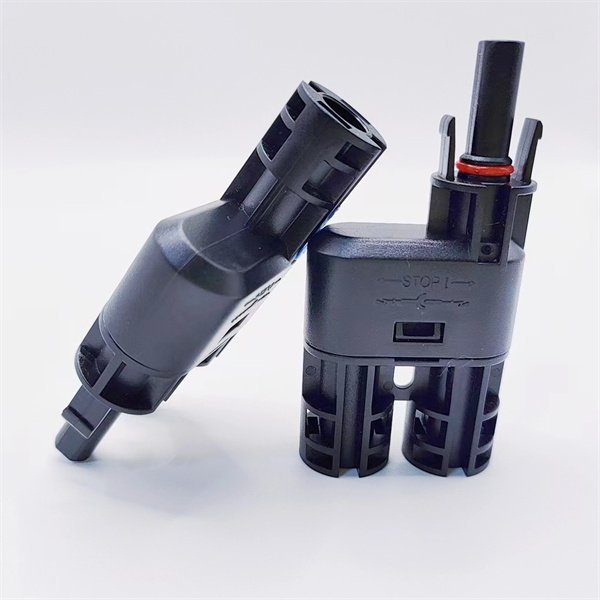

2 Way T-Branch Solar Connector is used for solar PV system assembly and DC cable connection. It is a detachable solar connector designed for easy installation, stable performance and reliable outdoor operation. With 1500V DC rated voltage and IP68 waterproof protection, this solar T-branch connector is suitable for photovoltaic module connection, PV cable branching and solar power system wiring.
The connector uses high-quality PPE/PPO insulation material and copper tin-plated contact parts to ensure good conductivity after crimping. Its safety lock design helps prevent connector loosening and improves electrical safety during solar PV system operation.
Product Category
Solar Accessories & Tools / Solar Connectors / PV T-Branch Connector
Application
This 2 way solar T-branch connector is widely used in solar panel connection, PV module parallel connection, DC solar cable branching, rooftop solar systems, commercial PV projects and solar power plants.
Structure
- Insulation Material: PPE / PPO
- Contact Material: Copper, tin plated
- Connector Type: 2 way T-branch solar connector
- Protection Degree: IP68 waterproof and dustproof
- Safety Design: Lock design to avoid connector loosening
Key Features
- 1500V DC solar connector for PV system wiring
- IP68 waterproof protection for outdoor solar installations
- Copper tin-plated contacts for stable conductivity
- PPE/PPO insulation material for reliable electrical performance
- Detachable design, convenient to assemble
- Safety lock design helps prevent loosening and electric shock risk
- Suitable for 2.5~10mm² / 14~8AWG solar cables
- UL94-V0 flame class for safer PV applications
Standards / Certification
- TUV
- CE
- ISO
- UL94-V0 flame class
- Safety degree II
Technical Parameters
| Product Name | 2 Way T-Branch Solar Connector |
|---|---|
| Rated Voltage | 1500V DC |
| Rated Current | Input: 20A; Output: 60A with 10mm² cable |
| Available Current | 30A, 50A, 60A |
| Insulation Material | PPE / PPO |
| Contact Material | Copper, tin plated |
| Test Voltage | 8KV, 50Hz, 1min |
| Typical Contact Resistance | ≤0.35mΩ |
| Degree of Protection | IP68, 1m / 1H |
| Safety Degree | II |
| Flame Class | UL94-V0 |
| Upper Limiting Temperature | 110℃ |
| Ambient Temperature Range | -40℃ to +85℃ |
| Suitable Cable Cross Section | 2.5~10mm² / 14~8AWG |
Why Choose Our Solar T-Branch Connector?
Wubai Cable Wire supplies reliable solar connectors, PV T-branch connectors, solar cables and solar accessories for photovoltaic projects. This 2 way T-branch solar connector is designed for stable DC connection, waterproof outdoor performance and easy installation in solar PV systems.
Send us your required connector type, current rating, cable size and order quantity. Our team will provide fast quotation and suitable solar connection solutions for your project.
