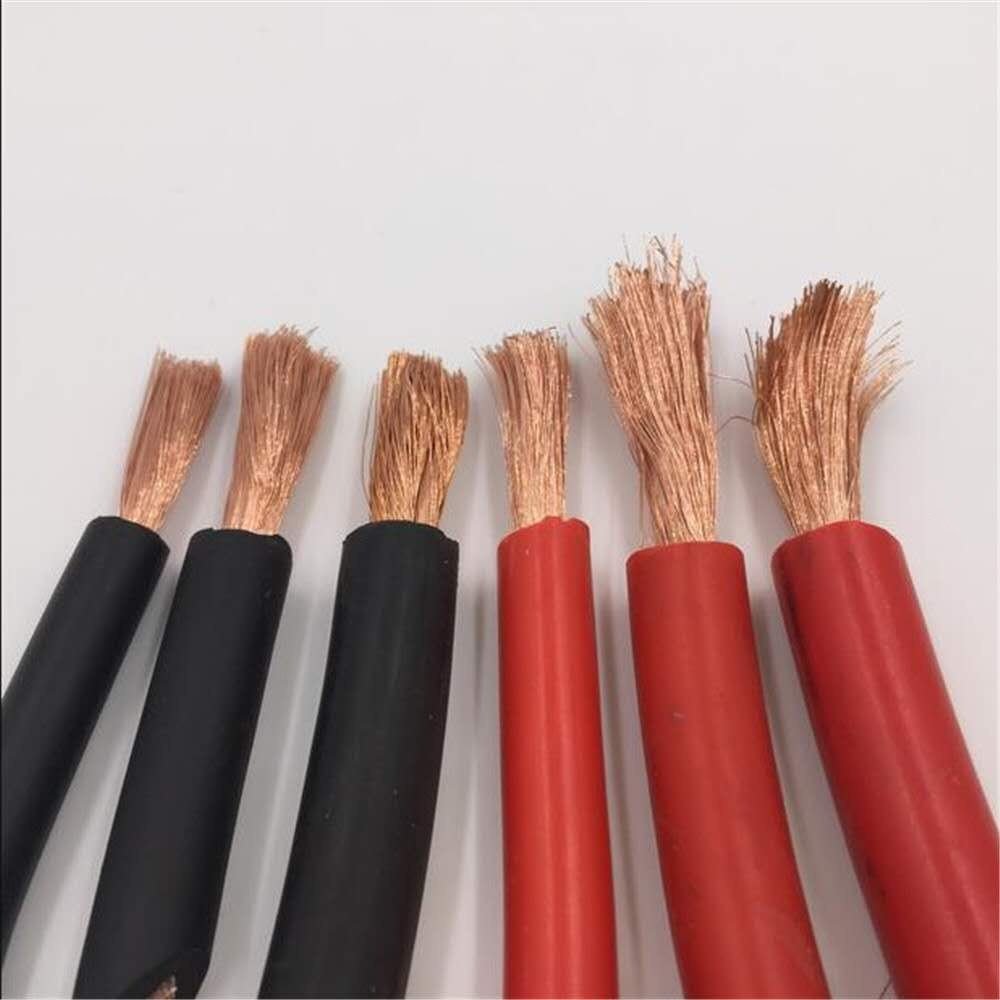

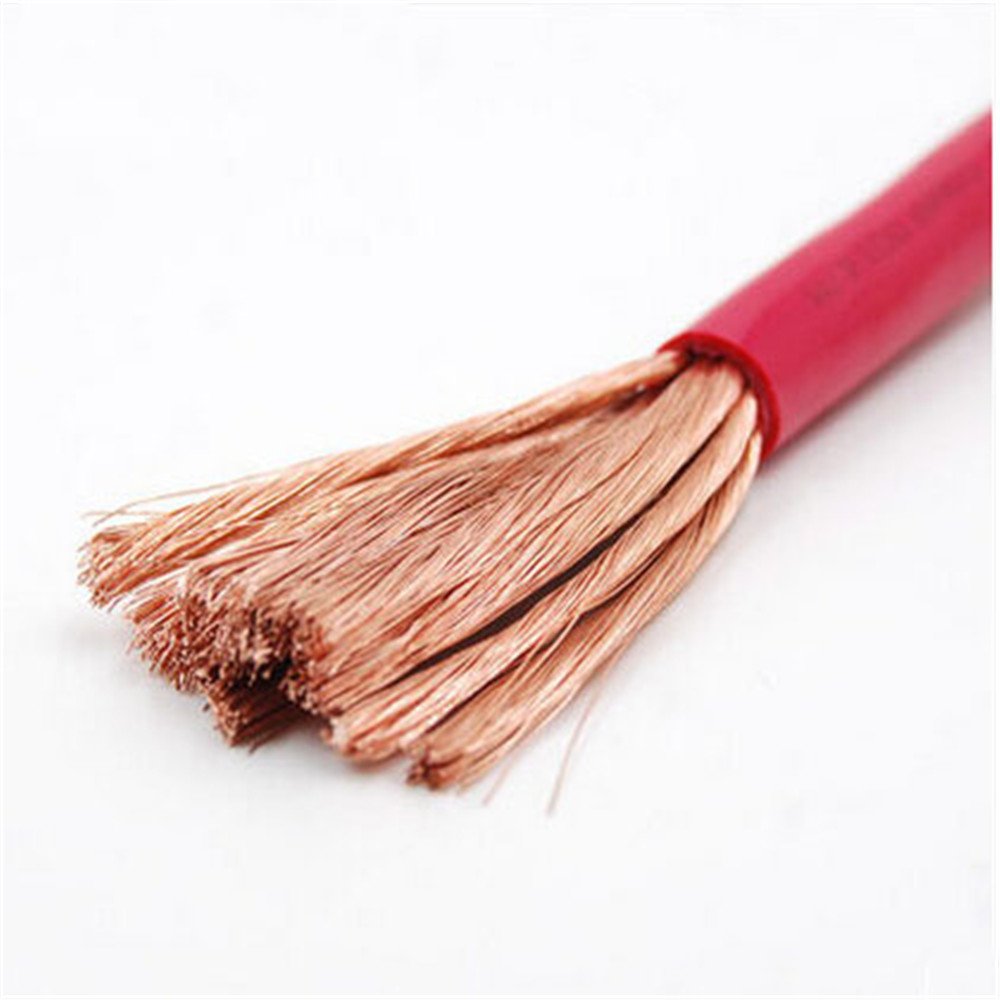

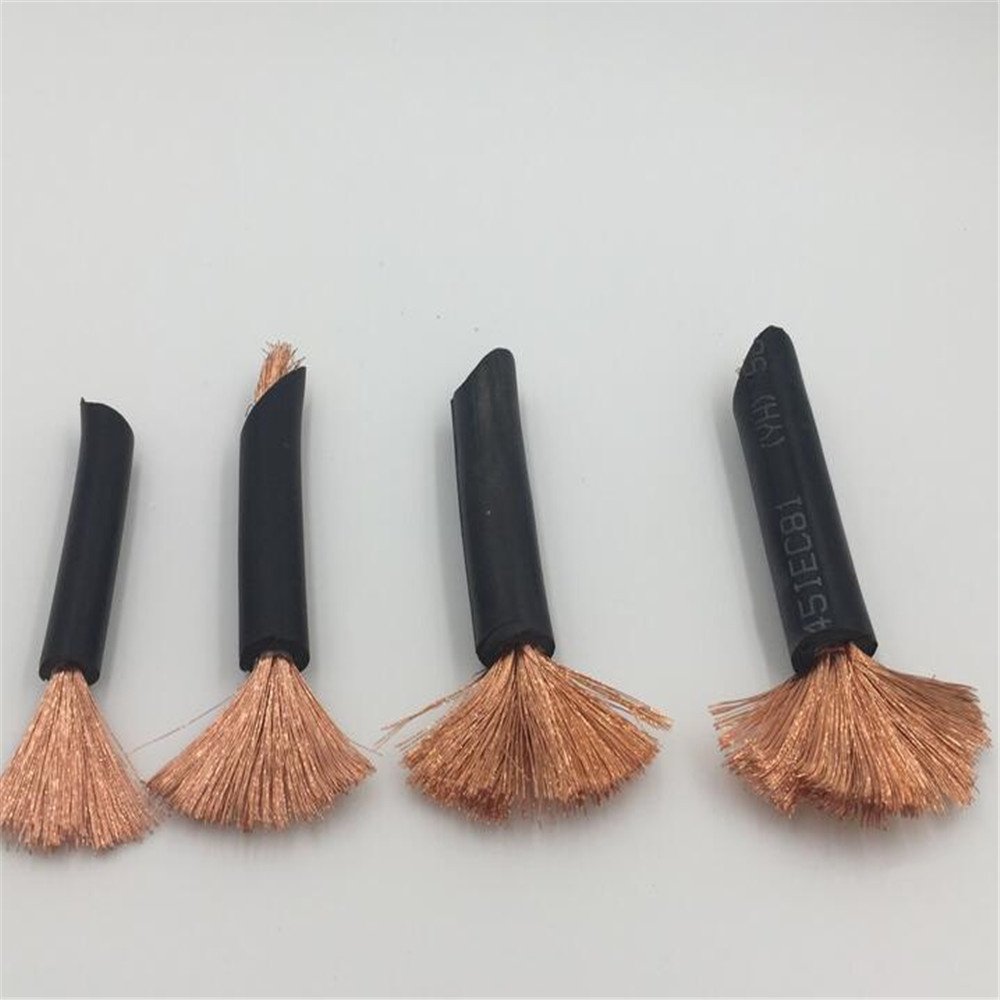

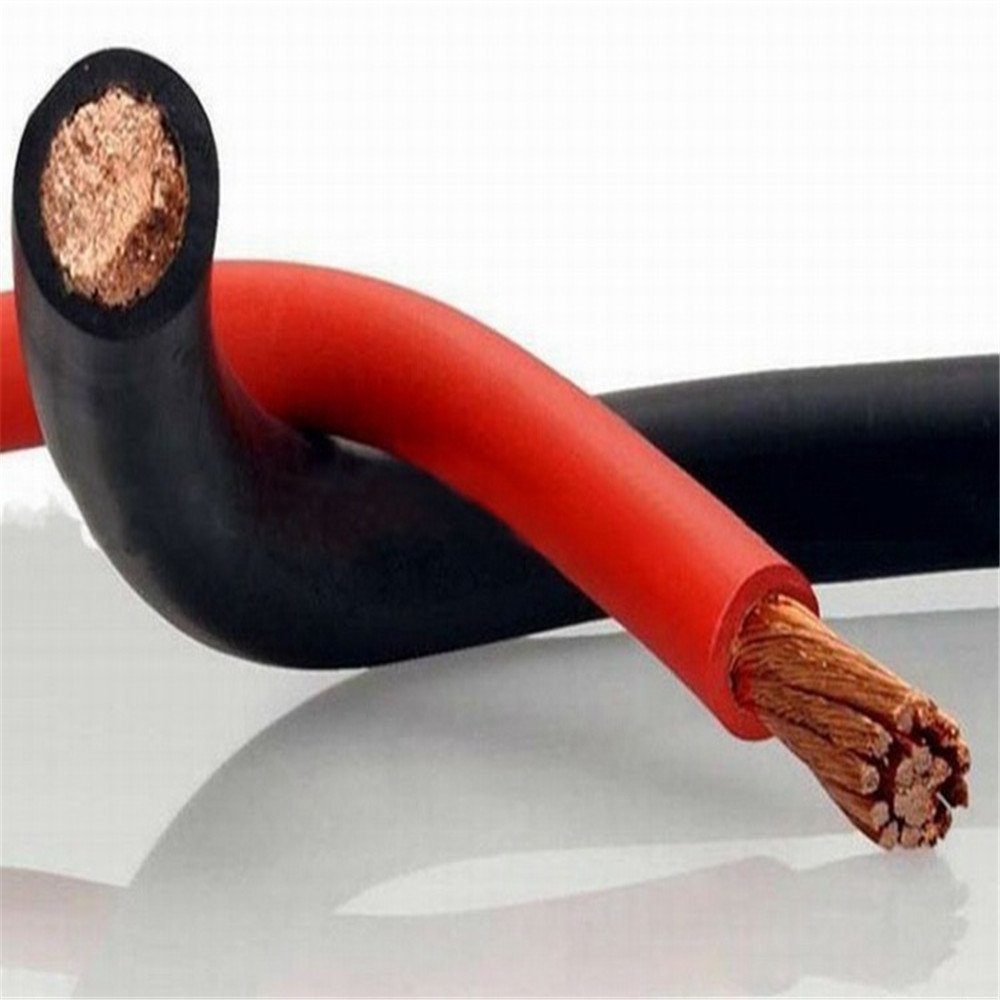

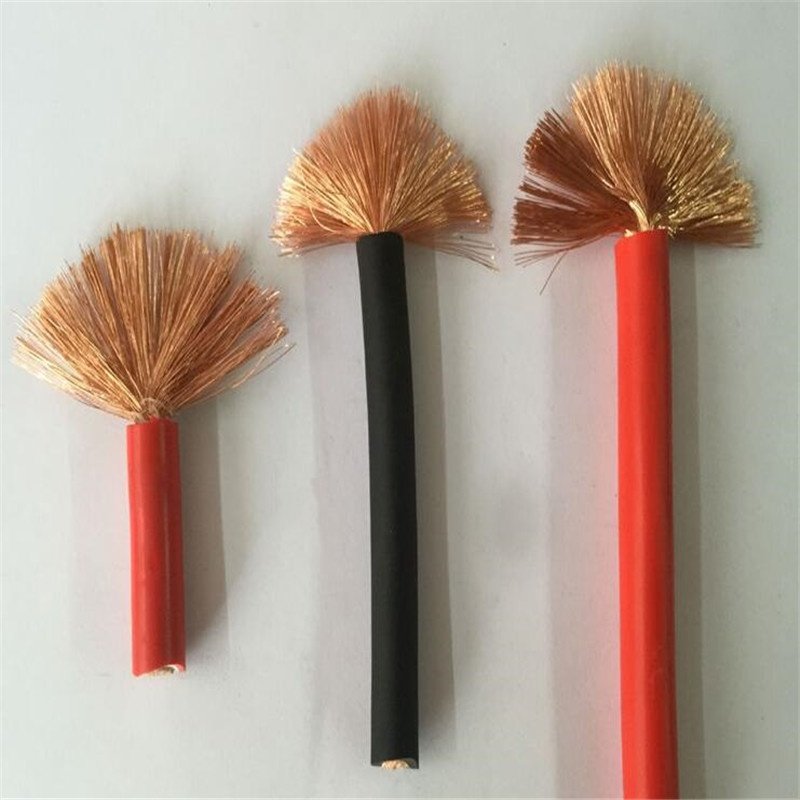

10mm² 16mm² Copper Battery DC Cable
10mm² 16mm² Copper Battery DC Cable is used for solar battery connection, car battery wiring, vehicle battery systems, UPS to inverter connection, DC power systems and energy storage applications. This battery cable is manufactured with fully annealed bare stranded copper conductor and PVC insulation to provide stable conductivity, low resistance and reliable DC power transmission.
Our copper battery DC cable is suitable for customers who need flexible battery cable without terminals. Red, black and customized colors can be supplied according to battery positive and negative circuit requirements.
Product Features
- 10mm² 16mm² copper battery DC cable for battery power connection
- Fully annealed bare stranded copper conductor
- PVC insulation for flexible DC battery cable applications
- Low conductor resistance for stable power transmission
- Maximum voltage: 450/750 VDC
- Operating temperature: -50°C to 105°C
- Suitable for solar battery, car battery, vehicle battery and UPS inverter connection
- Custom cable size, color, length, printing and packing available
Applications
- Solar battery connection
- Car battery wiring
- Vehicle battery systems
- UPS to inverter connection
- Energy storage systems
- DC power systems
- Industrial battery wiring
- Battery cable replacement and bulk supply
Construction
| Conductor | Fully annealed bare stranded copper |
| Insulation | PVC |
| Structure | Single core copper battery DC cable without terminals |
| Color | Red, black or customized |
| Printing | Custom cable printing available |
Technical Parameters
| Nominal Area | Conductor No./Dia. | Combined Thickness | Insulation Thickness | Sheath Thickness | Average Outer Diameter Min | Average Outer Diameter Max | 20°C Conductor Resistance |
|---|---|---|---|---|---|---|---|
| 10mm² | 322/0.20 | 2.0mm | 0.8mm | 1.2mm | 7.5mm | 9.7mm | ≤1.91 Ω/km |
| 16mm² | 513/0.20 | 2.0mm | 0.8mm | 1.2mm | 9.2mm | 11.5mm | ≤1.16 Ω/km |
| 25mm² | 798/0.20 | 2.0mm | 0.8mm | 1.2mm | 10.5mm | 13.0mm | ≤0.758 Ω/km |
| 35mm² | 1121/0.20 | 2.0mm | 0.8mm | 1.2mm | 11.5mm | 14.5mm | ≤0.536 Ω/km |
| 50mm² | 1596/0.20 | 2.2mm | 0.9mm | 1.3mm | 13.5mm | 17.0mm | ≤0.379 Ω/km |
| 70mm² | 2214/0.20 | 2.4mm | 0.9mm | 1.5mm | 15.0mm | 19.5mm | ≤0.268 Ω/km |
| 95mm² | 2997/0.20 | 2.6mm | 1.0mm | 1.6mm | 17.0mm | 22.0mm | ≤0.198 Ω/km |
| 120mm² | 1702/0.30 | 2.8mm | 1.0mm | 1.8mm | 19.0mm | 24.0mm | ≤0.161 Ω/km |
| 150mm² | 2135/0.30 | 3.0mm | 1.1mm | 1.9mm | 21.0mm | 27.0mm | ≤0.129 Ω/km |
| 185mm² | 1443/0.40 | 3.2mm | 1.2mm | 2.0mm | 22.0mm | 29.0mm | ≤0.106 Ω/km |
Standards and Options
This copper battery DC cable can be supplied according to RoHS, UL and ISO9001 requirements. The maximum voltage is 450/750 VDC, and the operating temperature range is -50°C to 105°C. Custom color, cable length, printing and packing can be supplied according to customer requirements.
Why Choose Wubai Copper Battery DC Cable?
Wubai Cable Wire supplies PVC copper battery DC cable for solar battery connection, car battery wiring, vehicle battery systems, UPS inverter connection and DC power applications. We support metric sizes from 10mm² to 185mm² for project orders and bulk supply.
To get a quotation, please send us your required cable size, color, cable length, voltage requirement, packing method and quantity. Our team will recommend a suitable copper battery cable solution for your application.
